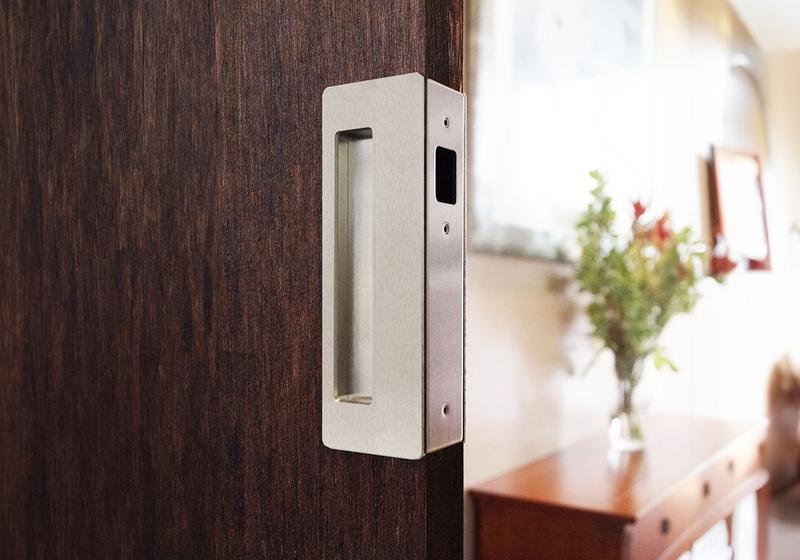

CL400 Magnetic Passage Cavity Slider Handle

CL400 Magnetic Passage

The CL400 Passage handle complements the rest of the range and features a magnetic latch to ensure the door doesn’t bounce off the closing jamb.

A non-latching option is also available.


NZ Patent No. 733386, 628616, Aust Patent No. 2014298044

Product Specifications

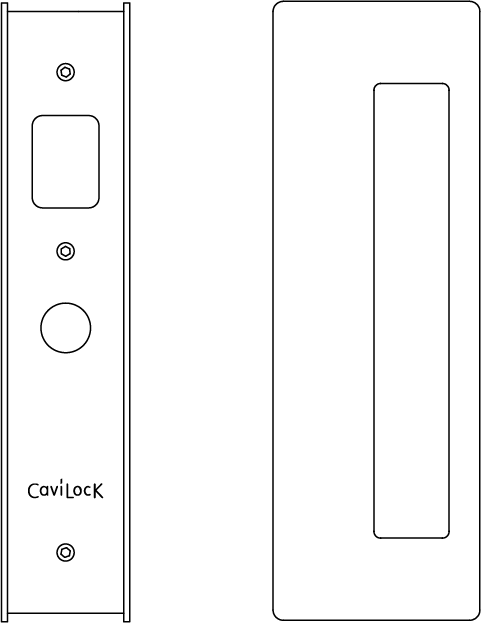

CL400 Magnetic Passage SpecificationCL400 Magnetic Passage Specification

Features

Patented Magnetic Technology: Magnetic catch and plunger action produces a satisfying "click" when near the striker plate to activate the handle's closing mechanism while the magnetic latch ensures the door doesn’t roll away from the closing jamb. Non-magnetic version also available.

Positive Grip For Heavy Doors: The large side cutout and finger pull on the front edge offer greater purchase to enable easy operation of sliding doors.

Easy Installation: Door preparation is a simple cutout. If retrofitting, enlarging a cut out for the CL400 Magnetic to fit over is easy. Installation is a breeze, just follow our guide and template. No mortice and no on-site modifications of the handle are required.

Stylish and Modern: Available in a wide range of finishes, the CL400 Magnetic is a popular contemporary and modern architectural option for sliding doors. Hidden screws keep the outside handle clean, while there are only three small screws that show on the face plate. When installed on a cavity door, the handle sits flush with the opening.

Durability and Reliability: Constructed of high-quality components, the CL400 Magnetic's moving parts sit flush until the door closes to minimise wear and tear.

Applications: Suitable for cavity and surface sliding doors.

Technical Details

Door Thickness: 34-52 mm

Size: 181 x 60.5 mm

Suitable Door Types: Timber, Aluminium, Steel

Options: Magnetic Latching, Non-Latching

Finishes: Satin Chrome, Satin Nickel, Chrome, Oil Rubbed Bronze, Matte Black

How to Specify (example)

Product: CaviLock CL400 Passage Handle
Location: Hallway
Configuration: Passage with magnetic latching
Door thickness: 38mm
Handle Finish: Satin Nickel

Striker Specifications

CL400 Magnetic Passage Flush StrikerCL400 Magnetic Passage Flush Striker

Flush Striker

CL400 Magnetic Passage Latching handles are supplied with a striker that is designed to sit flush with the face of the closing jamb.

Striker cutout template and instructions are supplied with your handle and cover installation into a flush or recessed closing jamb.

Colour Options

Handle Finishes_BrightChromeHandle Finishes_BrightChrome

Bright Chrome

Handle Finishes_SatinChromeHandle Finishes_SatinChrome

Satin Chrome

Handle Finishes_MatteBlackHandle Finishes_MatteBlack

Matte Black

Handle Finishes_SatinNickelHandle Finishes_SatinNickel

Satin Nickel

Handle Finishes_OilRubbedBronze ORBHandle Finishes_OilRubbedBronze ORB

Oil Rubbed Bronze

CaviLockCL400 Magnetic Range

CL400 Magnetic Passage Cavity Slider Handle
