FH-CeilingMountTrack - Single

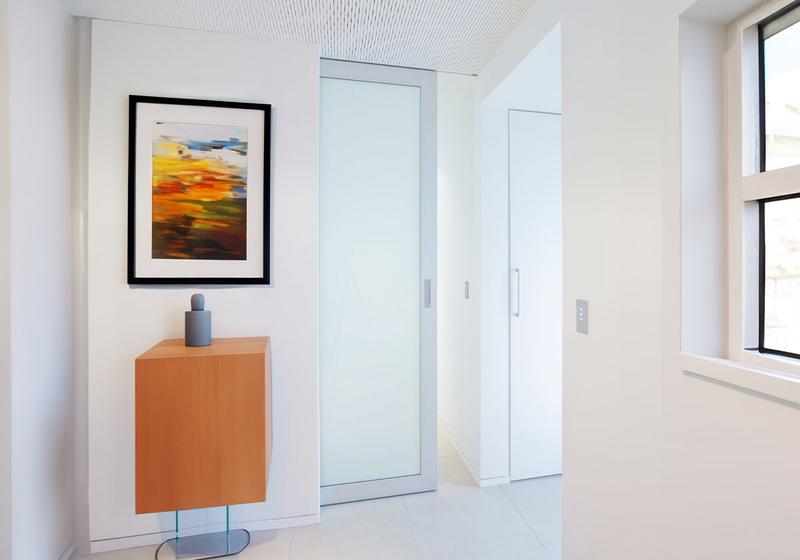

CS FH-CeilingMountTrack - Single is a full-height, ceiling-mounted track designed to seamlessly integrate with your ceiling lining, creating a flawless, flush finish.

The innovative design includes a pair of full-length fins that allow the ceiling lining to be fixed flush with the underside of the track. This single flush-mounted track is ideal for site-built pocket doors and surface sliding applications.

The CS FH-CeilingMountTrack - Single can be upgraded with the SofStop® soft-close feature, making it ideal for quiet environments like bedrooms, offices, and patient rooms.

Product Specifications

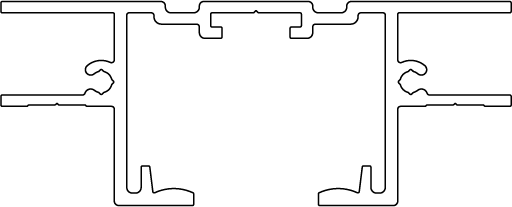

Full Height Ceiling Mount Track Single Specification Drawing

Features

FH-CeilingMountTrack - Single: Suitable for large room dividers or surface sliding applications.*

Can be configured to suit Bi-Parting door set-ups, including CornerMeeting detail.
Track may be painted on-site to match ceiling color. (See data sheet on our website).

Soft Close Option: Can be upgraded to SofStop® soft close for quiet operation.

Application Areas: Suitable for bedrooms, closets, offices, patient rooms, restrooms, hallways, laundries, and architectural feature openings.

*Not suitable for use in a pre-fabricated pocket frame. You will need to build a wall either side of the track when using in a pocket application.

Technical Details

Track Finish: Clear Anodized Aluminum

Door Thickness: No limit

Maximum Track Length: 24’ (7.3m)

Track Height: 1-7/16” (36mm)

Maximum Door Weight: 500lb (240kg), With SofStop: 350 lb (158kg)

Carriages: M6 (200lb), M8 (500lb), SofStop, SofStop HD

How to Specify

Step 1. Determine Door Width: Generally, your track length should be twice your door width.

Step 2. Select Track Length: Multiply your door width by two. Choose from pre-cut lengths: 6', 8', 12', 24'. Tracks can be cut down for custom widths.

Step 3. Select Carriage Pack: Choose one pack per door. Each pack includes carriages, mounting plates, T-Guide, screws, and an adjusting wrench.
For standard operation, select M6 (200lb/90kg) or M8 (500lb/240kg). For soft close, consult our SofStop Minimum Door Width table.

A Track Stop is needed when no physical stops are present, i.e., your door does not come to rest at a closing jamb or wall stud. If this is the case for your installation, be sure to choose a carriage pack that includes a stop.

Downloads

Brochure Installation Instructions FH-CeilingMountTrack - Single (CAD)FH-CeilingMountTrack - Single (PDF)
