CL100 LaviLock Accessible Hardware

The CL100 LaviLock is a sliding door lockset meticulously crafted for accessibility, ease of use, and lasting performance. Specifically designed for commercial bathrooms and public toilets, this innovative lockset redefines convenience for users with disabilities. Its sleek design and robust construction ensure effortless access and unmatched durability, making it perfect for high-traffic environments.

Supplied as a Left Hand or Right Hand set including Lever Handles, Stainless Steel Indication Plates, Slide Locking Buttons, Emergency Release and CL100 Mortice Lock Case.

Product Specifications

CL100 LaviLock Specification DrawingCL100 LaviLock Specification Drawing

Features

Council Compliance: Compliant with NZ4121:2001, the LaviLock is easy to use - no tight pinching or twisting of the wrist is needed to operate the handle. Centre of the handle should be positioned between 900mm and 1200mm (1000mm optimal) above the finished floor level. The door needs to be at least 910mm wide to allow a minimum clear walk-through of 760mm.

IMPORTANT: The door must protrude 100mm from the pocket to allow the hardware to clear the jambs. Specify Accessible Cavity Slider and CS NewYorker door for a complete council-compliant solution.

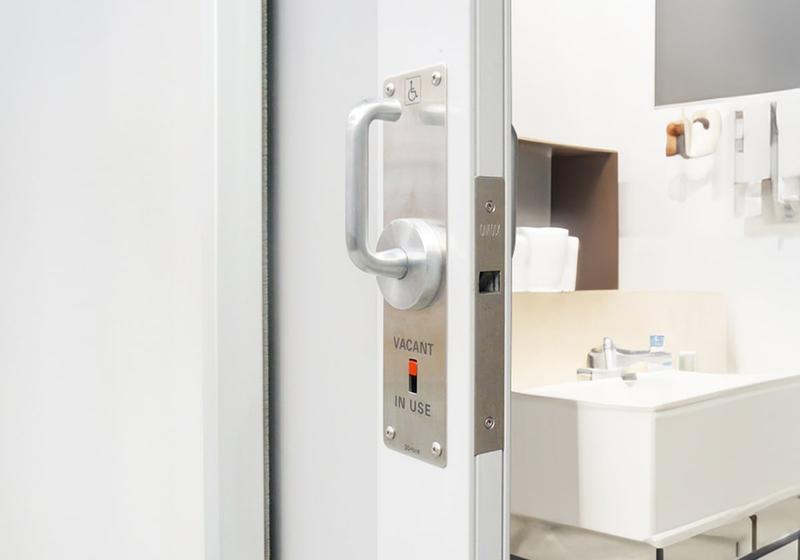

Easy Operation: In addition to the easy-to-grasp handle, the LaviLock face plate provides clear signage for "Vacant" or "In Use" on the outside. On the inside door face, a light flick of the locking mechanism will yield a satisfying "click" when locked with bold letters showing which direction is locking and unlocking.

Corrosion-Resistant Construction: A solid construction of Zinc, Bronze, Brass, and Stainless-steel combine to create an ultra-durable and corrosion-resistant range of handles. If LaviLock is to be installed into areas where there is exposure to corrosive environments, e.g. high chlorine or salt concentration, contact us for an appropriate solution.

Versatile Installation: Every CL100 Range handle shares the CL100 Mortice Lock internally, allowing you to use the same installation template for multiple doors, even if they have differing external hardware.

Application: Suitable for a wide range of pocket and surface sliding doors in industrial, commercial, and hospitality applications.

Exit Free Option: When the door is locked, no unlocking action is required for passage from the inside.

Technical Details

Minimum Door Thickness: 34mm

Door Protrusion: 100mm

Backset: 56mm

Configurations: Lever, Exit Free

Finishes: Satin Chrome, Polished Brass

How to Specify (example)

Product: CL100 LaviLock
Location: D02
Configuration: LH Exit Free
Door thickness: 38mm
Handle finish: Satin Chrome

Options

Colour Options
Handle Finishes_SatinChromeHandle Finishes_SatinChrome

Satin Chrome

A swatch of the Polished Brass finish for CS Cavity Sliders HandlesA swatch of the Polished Brass finish for CS Cavity Sliders Handles

Polished Brass
