CS Wall Mount Track

CS WallMountTrack

Specifications
Downloads

Ideal for surface sliding applications, this track requires a strong wall to support a side-mounted track with the door above the opening.

It features pre-drilled fixing holes for quick and easy installation and comes with a pre-finished clip-on aluminium pelmet and end caps to neatly conceal the top of the door, track, and running gear. Versatile and adaptable, this wall-mounted track is perfect for commercial fit-outs, sheds, and showrooms.

Product Specifications

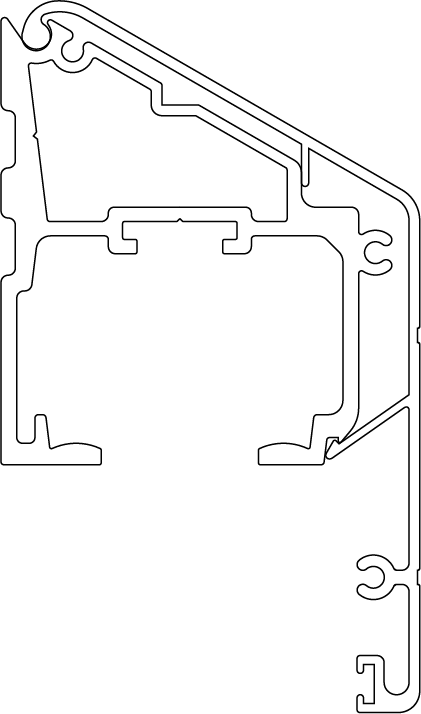

Wall Mount Track Specification DrawingWall Mount Track Specification Drawing

Features

  • Available in cut lengths up to 6m long.
  • Track is high-quality, heavy duty extruded aluminium.
  • Pelmet may be anodised or powder coated in a range of colour options. Anodising provides extra protection in high salt areas.
  • Suits doors up to 40mm thick including CaviDoors.
  • Pelmet and end caps are removable for future servicing requirements.
  • Pre-drilled fixing holes for quick, easy installation.
  • Brush seals are available (one side of door only).

Maximum door weight: Standard: 240kg, SofStop: 100kg.

Track Finish: Natural anodised

Carriage Pack: M6/M8/SofStop

How to Specify (example)

Product: CS WallMountTrack

Location: Office 3

Track Length: 4.2m

Pelmet Finish/colour: Dulux Matt Black

Single or Bi-Parting: Single

Carriage Pack: SofStop Twin 50kg (Soft Open & Close)
